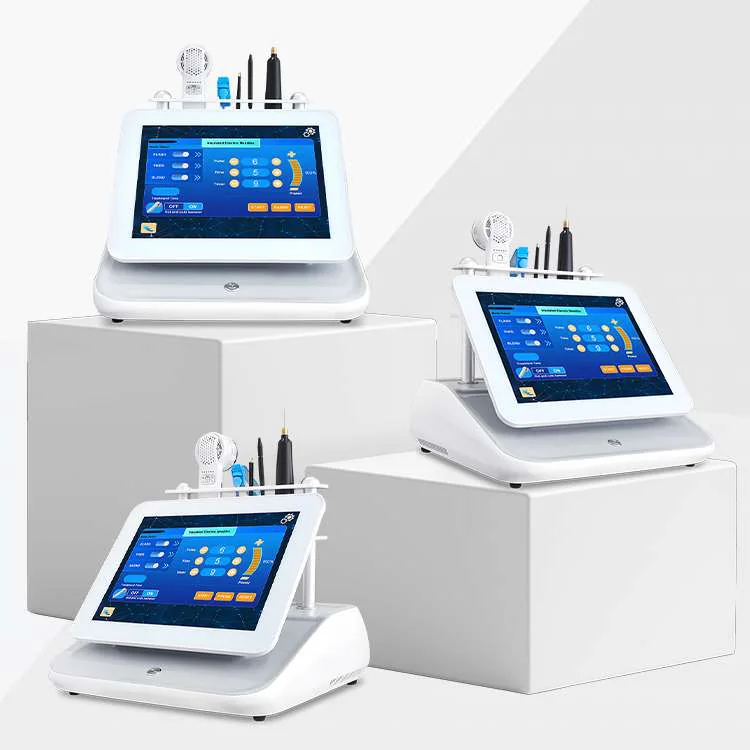

5-in-1 Electrolysis TG09
Insulated needles, conductive tweezers, ionic pen, hot & cold hammer and wrist strap in one touch-screen system.
Overview

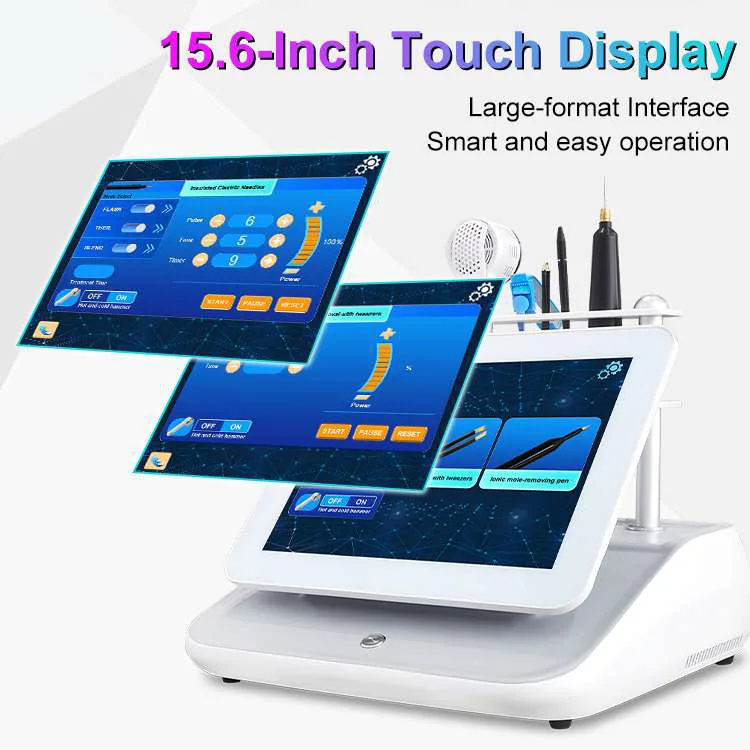

The TG09 brings a complete electrolysis workflow into one compact system: insulated needles for follicle-by-follicle permanent hair removal, conductive tweezers, an ionic (plasma) pen for skin blemishes, and a hot & cold hammer for comfort and recovery. Every tool is selected on the 15.6-inch touch screen and triggered with the foot pedal.
Because electrolysis treats each follicle individually, it works on every hair color - black, blonde, red and grey - unlike light-based methods that rely on pigment.
What's in the 5-in-1
Insulated electric needles
A hair-thin insulated probe is guided into the follicle and delivers a precise current to the growth center. Three working modes - Flash, Thermolysis and Blend - cover fine, coarse, light and dark hair.

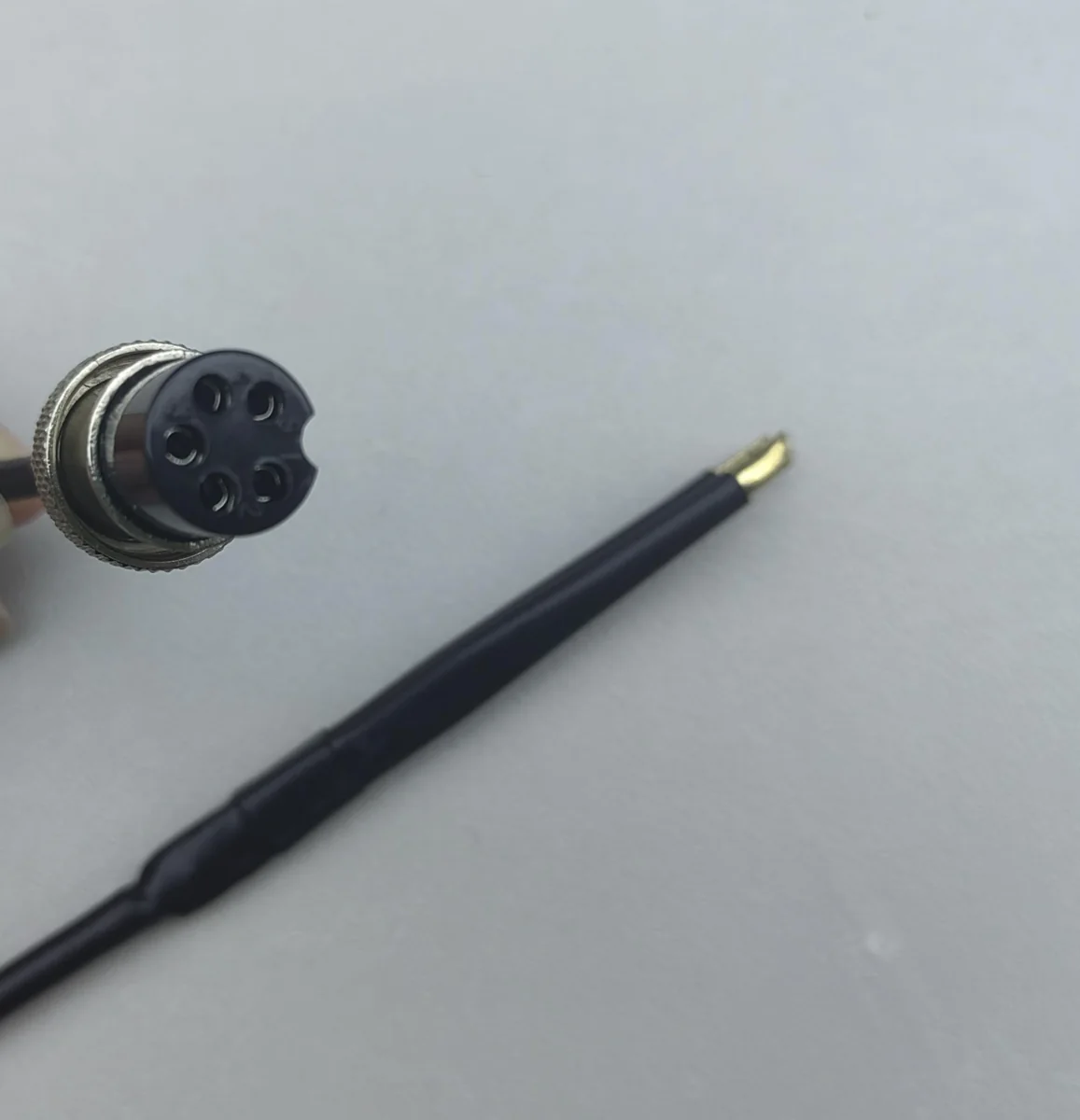

Conductive tweezers
Epilation tweezers conduct part of the current while the hair is gripped and lifted with the foot pedal, so hair is removed without damaging the epidermis. Warm the unit up for about 5 minutes before use.

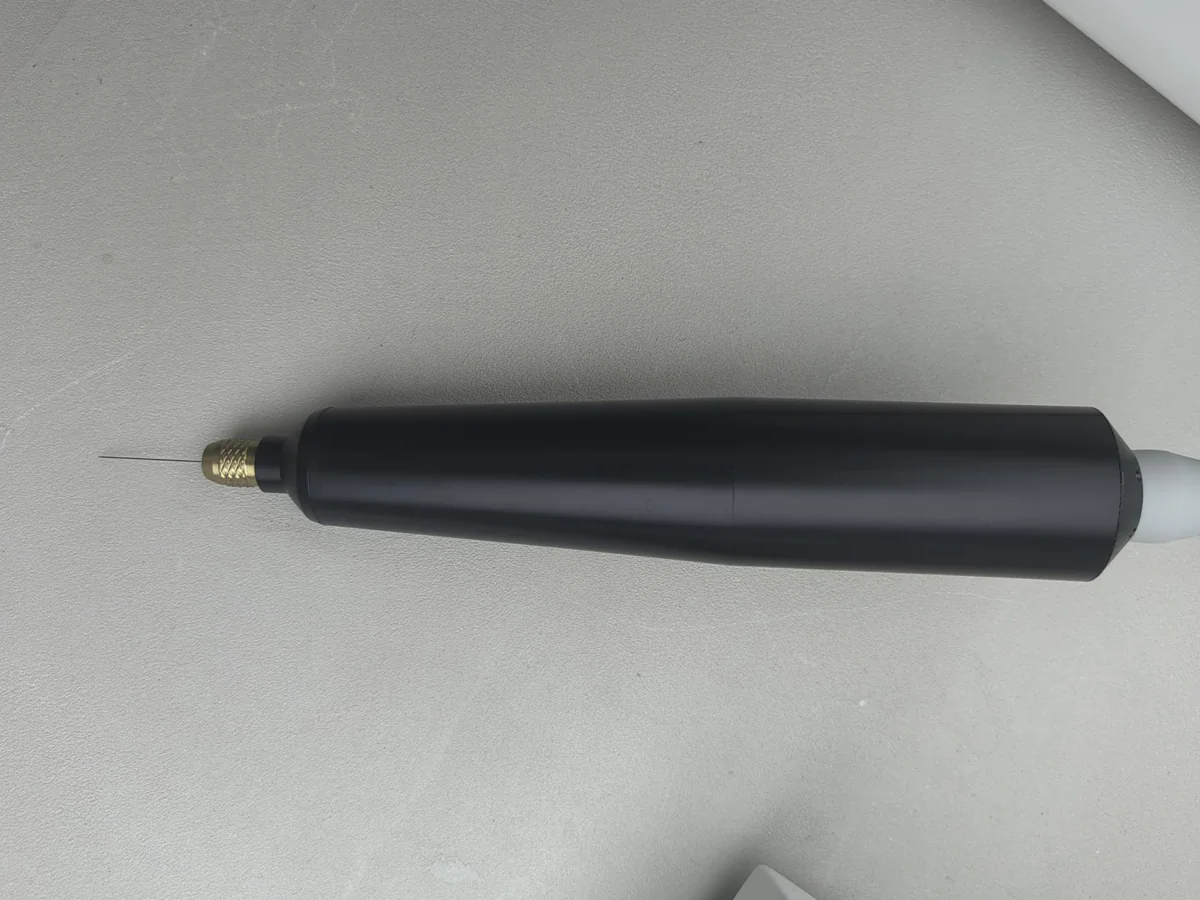

Ionic (plasma) pen
A fine-tip pen with six needles (3 straight, 3 curved) for skin blemishes such as moles, freckles and spots. Pulse timer and frequency are adjustable on the touch screen.
Hot & cold hammer
Use the cold mode before treatment to numb and calm the skin, and the hot mode afterwards to ease redness and irritation. Intensity is adjusted on the handle.
Anti-static wrist strap
Worn by the therapist during needle treatments to help relieve slight discomfort.
Foot pedal
Hands-free control of the output time, so the operator can match current duration to hair thickness and follicle depth.
How a treatment works
- 1
Screen & prepare
Check contraindications, choose the area, disinfect and test tolerance on a small spot.
- 2
Insert & treat
Use the insulated needle to apply low-level current to each follicle, or lift hairs with the conductive tweezers.
- 3
Cool with the hammer
Cold mode numbs and calms the skin; hot mode afterwards eases redness and irritation.
- 4
Refine
Tweezers gently remove treated hair, leaving no residual hair in the follicle.
- 5
Finish with the plasma pen
Low-power plasma pen use helps soothe the skin and reduce ingrown hairs.
Skin treatments with the ionic pen
Micro-point high-frequency current (15 MHz) delivered through an ultra-fine filament treats the tissue precisely while sparing the surrounding skin. Pen treatments should be carried out only by qualified practitioners.
Vascular lesions
Erythema streaks, telangiectasia, cherry angiomas
Benign skin lesions
Milia, flat warts, junctional / mixed nevi, xanthelasma
Pigment disorders
Lentigines, actinic keratosis, solar melanosis
Operating guidance
Typical starting ranges from the manufacturer's manual for the insulated-needle modes. Always adapt settings to the client and test on a small area first.
- Flash mode - Pulse
- Usually 1-5 (range 1-9), higher for coarser hair
- Flash mode - Time
- 1-3 seconds per treatment, to avoid heat build-up at the needle
- Flash mode - Power
- Generally 1-5, adjusted to skin tolerance and hair type
- Thermolysis mode - Power
- Generally 4-9; gentle, suited to fine, soft or light hair and small areas such as the face and underarms
- Blend mode - Power
- Generally 4-9; suited to coarse, dark or stubborn hair (beard, chest) and areas needing lasting results
- Needle depth
- About 0.5-1 mm along the direction of hair growth, never into the dermis
- Follicle spacing
- 1-2 mm between adjacent follicles in the same area
- Session length
- No more than 20 minutes per area; work in batches on dense hair
Treatable areas
Treatment examples
Manufacturer-supplied before-and-after examples. Individual results vary with hair thickness, hormones, skin type and prior hair removal, and permanent results depend on completing the full treatment cycle.

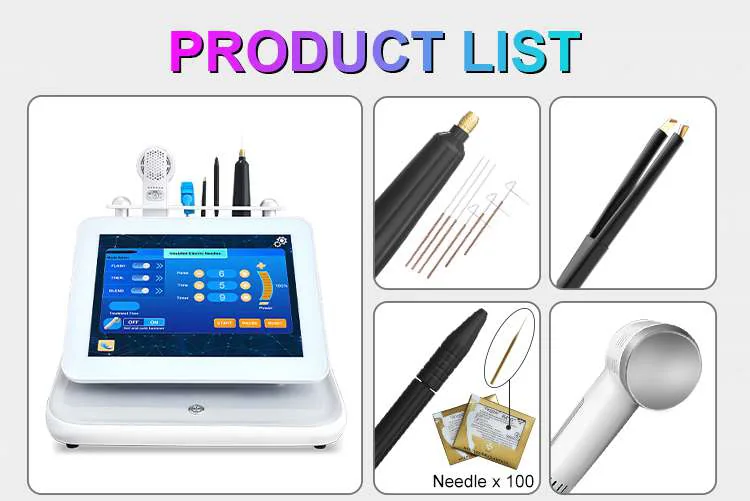

What's included
- Main unit with 15.6-inch touch display
- Insulated electric needle pen with 100 needles
- Conductive epilation tweezers
- Ionic (plasma) pen with 6 needles (3 straight, 3 curved)
- Hot & cold hammer
- Anti-static wrist strap
- Foot pedal
- Power cord
Safety & aftercare
Before treatment
- Ask about health history: heart disease, hypertension, diabetes, skin inflammation, scarring tendency, pregnancy or lactation are contraindications - do not treat if any applies.
- Avoid damaged, red, swollen or allergic skin. Remove metal jewelry from the treatment area.
- Disinfect the area 2-3 times with medical alcohol (iodophor followed by saline for sensitive skin).
- Start on a small area at a low setting to test the client's tolerance to current.
After treatment
- Rinse the area with saline and apply a soothing repair gel after treatment.
- For 24 hours: keep the area dry, no makeup and no rubbing; avoid sun, saunas and strenuous exercise.
- Slight redness, swelling or scabbing for 1-3 days is normal - do not pick; let scabs fall off naturally.
- Repeat every 4-6 weeks (following the hair growth cycle); 6-12 sessions are usually needed for permanent results.
- Needles are single-use: dispose of them as medical waste. Wipe the unit and cables with alcohol after each session.
This equipment is intended for use by trained professionals in line with local regulations. Ask us for the documentation and certifications that apply in your country.
